Very compact and integrable Generators

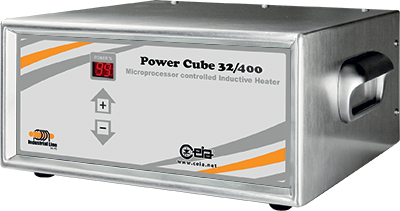

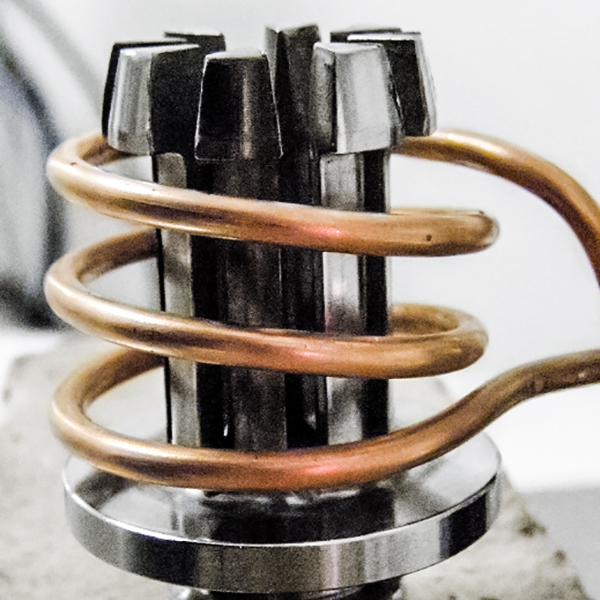

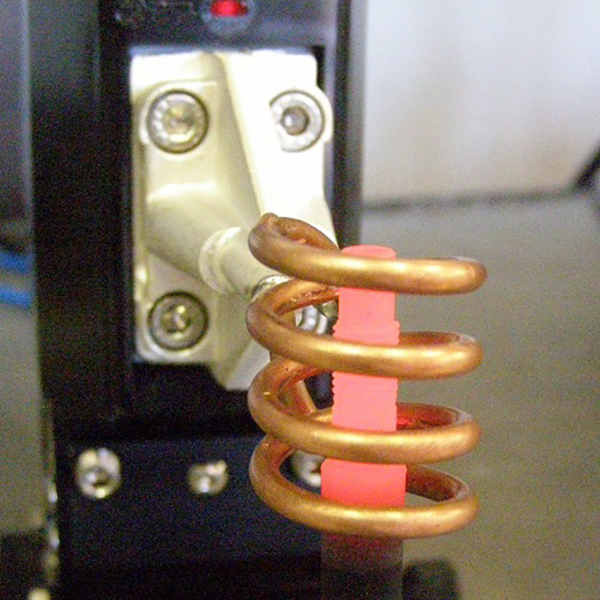

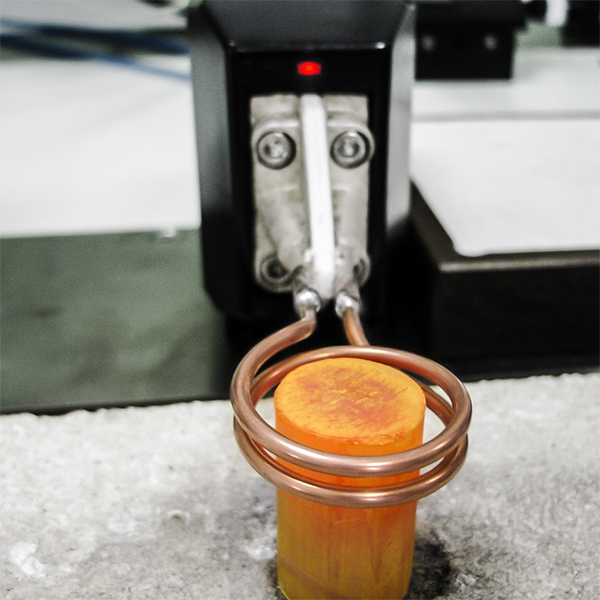

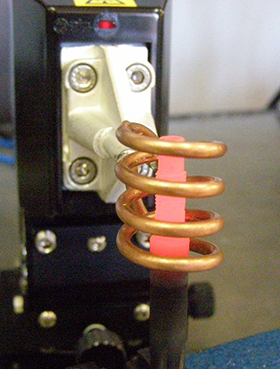

The Power Cube 400 HI-PE Series of High Frequency Generators includes two models with a power rating of 2.8 to 3.5kW. They combine the miniaturized CEIA Heating Head solution (patented) with a powerful, continuous-duty rated generator with so high efficiency that it can replace traditional generators in applications up to 12kW, thus cutting the initial investment and operating costs.
These compact devices are manufactured using solid-state technology and each has an embedded microprocessor. This guarantees stable power output as well as optimum operating frequency. The microprocessor also performs monitoring and diagnostic functions to inform the user of device status.
The generators have an ideal design for integration into automatic production systems. Space efficiency and simple operation also make these generators perfect for manual applications. All CEIA Power Cube Generators can be combined with the CEIA Master Controller V3+ unit. Each HI-PE Generator is accompanied by a calibration report that certifies the stability of the output voltage coming from the heating head.
The use of innovative technology and latest-generation components makes the 400 Series Generators extremely advantageous in terms of performance, power output and operational cost.
| Power Cube 32/400 | Power Cube 45/400 |
Power Supply and Power | Input current | 13A max - external conductors ø2.5 min. | 16A max - external conductors ø4 min. |
Average power at inductor | 32 kVAR | 45 kVAR |
Maximum absorbed power | 2.8 kW | 3.5 kW |
Supply voltage | 180 ÷ 260 Vac, monophase - 50/60 Hz |
Frequency Range | 375 kHz... 575 kHz |
Cooling | Water cooling | Pressure: 300 kPa |
Water flow for each connected head | From 1.5 to 2 l/min |
Control Inputs | RS232 serial interface | 1 RS232 asynchronous serial port for connection with external PLC or Controller |
Digital input activator | 2 isolated digital inputs for the cycle activation switches |
Analogue power adjustment input | 2 analog inputs for output power control (optional) |
Operating Conditions | Operating temperature | + 5 °C to + 55 °C |
Storage temperature | - 25 °C to + 70 °C |
Relative humidity | 20-95% (without condensation) |
Dimensions (WxDxH) | Generator | 275 mm x 265 mm x 140 mm | 275 mm x 265 mm x 140 mm |
Heating head HH10/HH11 | 62,5 mm x 123 mm x 95 mmm | 62,5 mm x 123 mm x 95 mm |
Miniaturized heating head HH15 | 52 mm x 107 mm x 77 mm | 52 mm x 107 mm x 77 mm |
Standard inductor holder | 150 mm | 150 mm |
Weight | Generator | 10 kg | 10 kg |
Heating head | 2 kg | 2 kg |
Conformity | Complies with international standards currently applicable for Electrical Safety (EN 60204-1, EN 60519-1, EN 60519-3) and Electromagnetic Compatibility (EN 55011, EN 61000-6-2) |
