CEIA SH15/SLE
Compact Pyrometers for Measurement of metallic surfaces between 80°C and 2000°C
- Temperature Range from 80°C to 2000°C
- Emissivity adjustable from 0.1 to 1
- High Accuracy
- High-Speed
- Compact design
- Available with different focus distance and aiming spot size
- LED aiming light
- Supplied with Calibration Report traceable to certified International Standards
- AISI 304 Stainless Steel Construction
The Thermal Profile System allows programming, quality certification and traceability of each thermal cycle. Up to 20 Programmable Temperature and Time Segments per Process; Up to 100 different storable processes; Maximum Power Output Programmable for Each Individual Segment; Temperature Tolerance Window Programmable for Each Individual Segment; Out-of Tolerance and End-of-Cycle Outputs for Each Process.

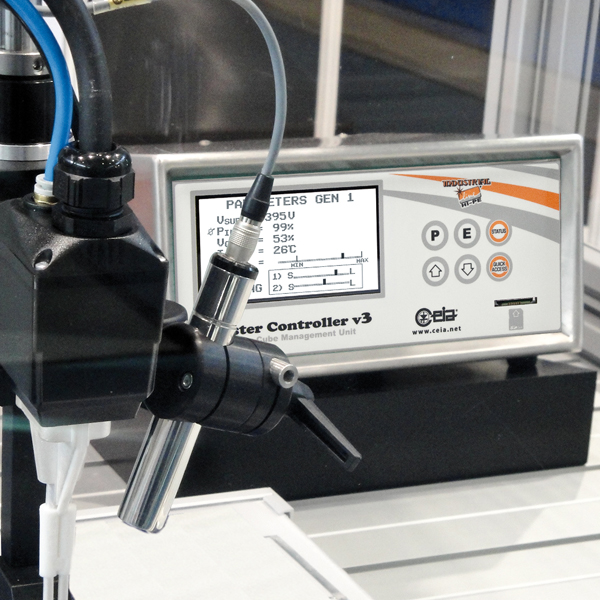

Along with the CEIA optical temperature sensors (SH15/SLE series), the CEIA Controllers allow the implementation of efficient induction soldering systems and achievement of completely repeatable, economical heating processes and finished products: Master Controller v3 (Integrated Controller of Heating and Soldering Cycles); Power Controller v3 (Integrated Controller of Heating Cycles); Net Master Controller (Power Cube Generators Network Controller)

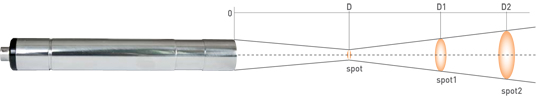

Model | Close-up lens | D Distance (mm) | Spot Diameter (mm) | D1 Distance1 (mm) | Spot 1 Diameter (mm) | D2 Distance2 (mm) | Spot 2 Diameter (mm) |
SH15/SLE-550-D1 80...700°C | Included | 550 | 12.5 | 1000 | 36 | 2000 | 86 |
CL240/SH15 | 240 | 4.5 | 500 | 24 | 1000 | 63 |
CL120/SH15 | 120 | 2.5 | 250 | 19 | 500 | 52 |
CL60/SH15 | 60 | 0.5 | 150 | 18.5 | 300 | 51 |
SH15/SLE-550-D2 120...900°C | Included | 550 | 4.5 | 1000 | 21 | 2000 | 57 |
CL240/SH15 | 240 | 1.5 | 500 | 18 | 1000 | 51 |
CL120/SH15 | 120 | 1 | 250 | 17 | 500 | 46 |
CL60/SH15 | 60 | <0.4 | 150 | 19 | 300 | 50 |
SH15/SLE-550-D3 200...1600°C | Included | 550 | 2 | 1000 | 16.5 | 2000 | 47 |
CL240/SH15 | 240 | 0.6 | 500 | 16 | 1000 | 47 |
CL120/SH15 | 120 | <0.4 | 250 | 15 | 500 | 44 |
CL60/SH15 | 60 | <0.4 | 150 | 18 | 300 | 49 |
SH15/SLE-550-D4 500...2000°C | Included | 550 | 2 | 1000 | 16.5 | 2000 | 47 |
CL240/SH15 | 240 | 0.6 | 500 | 16 | 1000 | 47 |
CL120/SH15 | 120 | <0.4 | 250 | 15 | 500 | 44 |
CL60/SH15 | 60 | <0.4 | 150 | 18 | 300 | 49 |
| SH15/SLE |
Temperature range | 80...2000 °C |
Temperature resolution | 0.1 °C (up to 999.9 °C) 1 °C (above 1000 °C) |
Emissivity range | 0.1-1.0 |
Response time | 100 uS Time Constant |
Measurement SpotAiming | High Definition, 620 nm wavelength led beam |
Internal digital controls | Offset and Range Calibration Parameters |
Environmental Temperature Measurement and Correction |
Automatic Gain Range Selection |
Compatible controllers | CEIA Power Controller v3, CEIA Master Controller v3, CEIA Net Master Controller |
Power Supply | +/-15 V - +10/-5 mA, directly supplied by CEIA Controllers |
Connection cable | 4.8 mm (diameter) - 1.5...4 m (length) |
Housing | AISI 304 Stainless Steel |
Weight | 100 g |
Housing Protection | IP65 |
Operating Temperature | 0°C...+65°C |
Storage Temperature | -25...+70°C |
Conformity | Complies with international standards currently applicable for Electrical Safety and Electromagnetic Compatibility (EMC) |
